Havana DAC
Led Status from Front Panel
There are 4 leds installed in pcb and are visible through acrylic front panel.

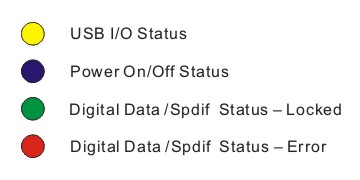

The led are as following setup status:

@

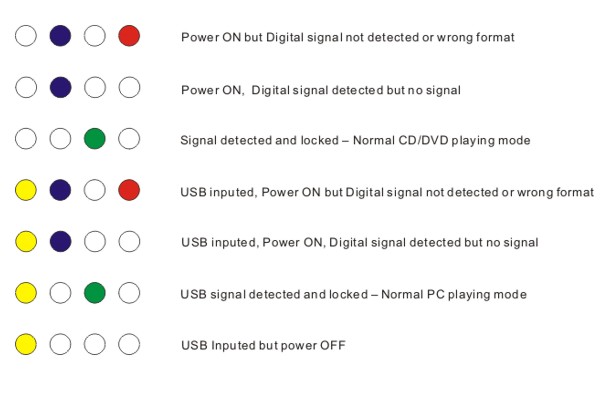

Possible status of operation are like following:

Rear Panel Selection
@

@

There are three digital inputs in rear panel of Mhdt DAC (USB version), named toslink, RCA and USB.

The selection of these digital inputs:

Group 1-A : Toslink

Group 1-B: RCA (Coaxial)

Group 2 : USB

Group 1 & 2 is selected automatically by the priority of USB input.  Once USB is inputted , the USB is active and Group 1 inputs are disable.

Group 1 selection: 1-A and 1-B is selected manually by the toggle switch located in between.



@
