Stockholm 2 DAC is a non over-sampling, no digital filter, no op-amp, no feedback structured DAC.

This tends to produce most realistic and natural sound.

Stockholm 2 DAC is capable of up to 24bits/192kHz digital signal inputs yet remains driving legendary PCM56P R-2R digital to analog output.

The USB input section is in asynchronous operation.

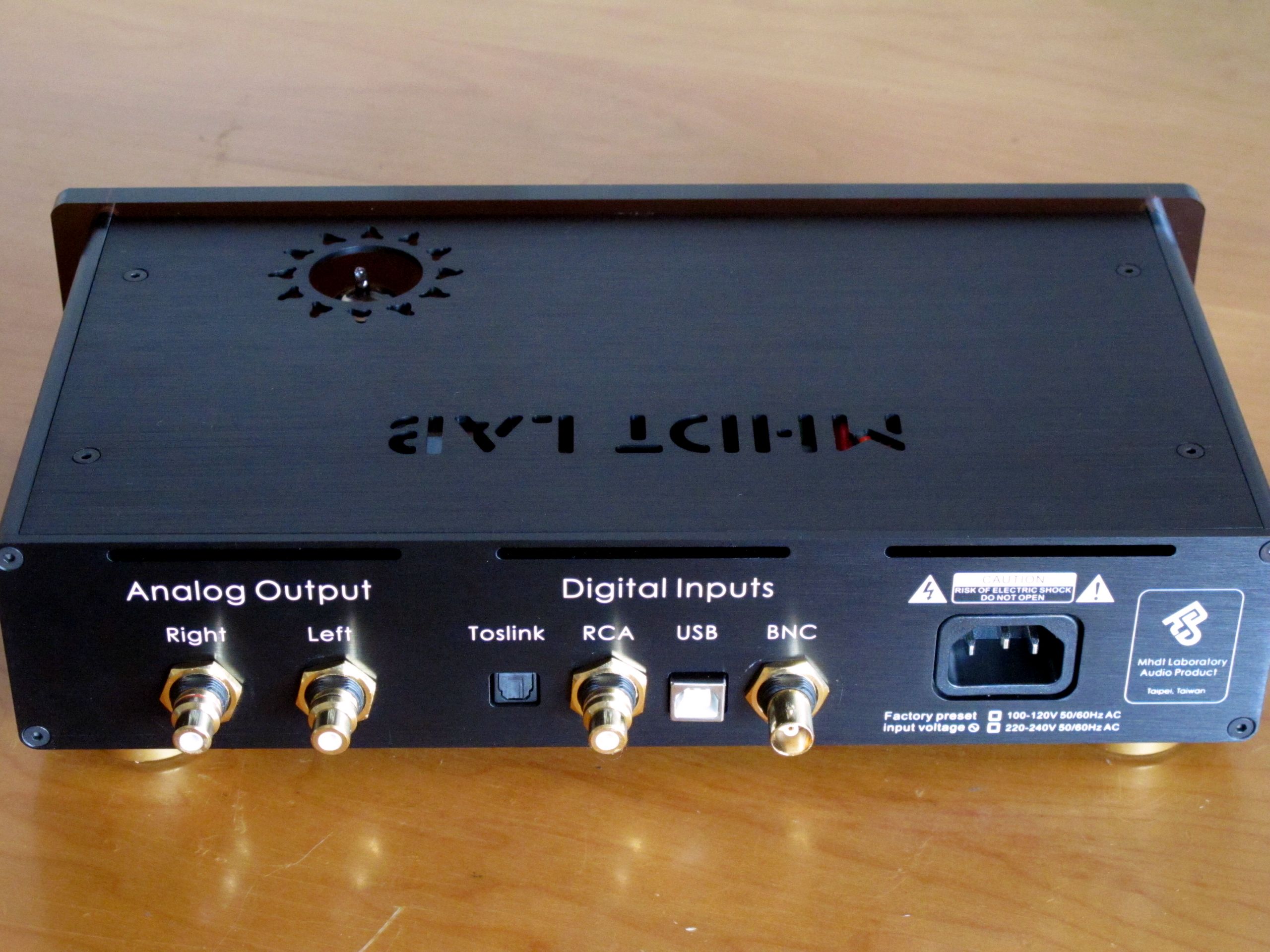

Total four independent  digital inputs; BNC, USB, RCA and Toslink.

The 4 digital inputs are independent to each other, only one among them will be active and is controlled by the tact switches located in front panel.



Tube buffered output, tube in stalled is  GE5670 3 mica tube.

Tubes can be used: 5670, 2C51, 396A, 6385, 6CC42, 6854, 6N3,

6854, CV2575, CV4013, CV5894, CV8247, CV2381

115/230V power supply selectable from internal PCB jump pins setting

Available in black cabinet only.

No powercord is included when ship out





Specifications:

Digital Receiver CS8416

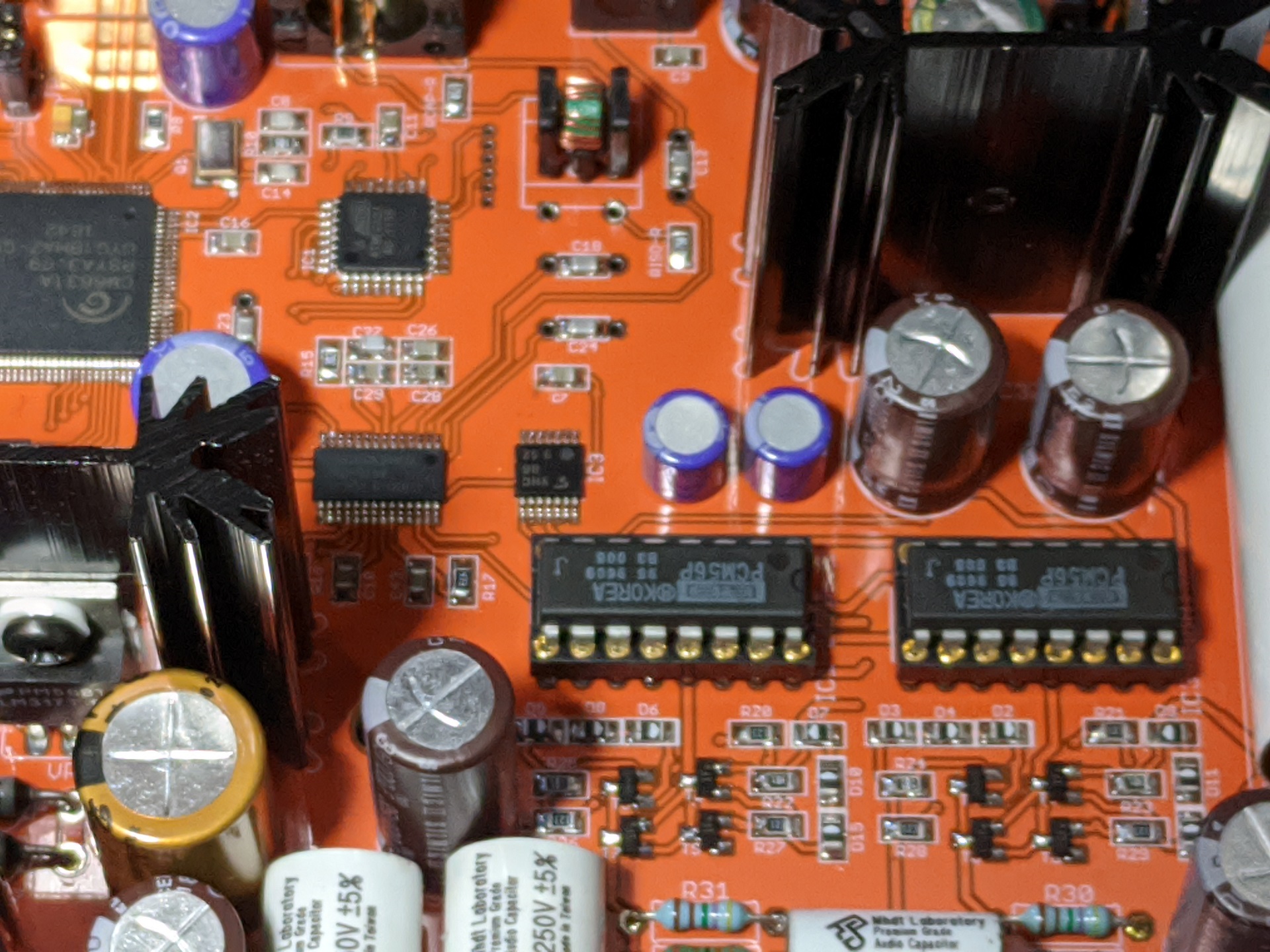

D/A converter PCM56P-J

Frequency response: 20 Hz to 20 kHz (± 2dB)

Output impedance:  32 ohms

Output level:  3 Vrms

 All inputs support 16/24 bits/ 32 kHz up to 192 kHz

Dimensions clear (W x D X H) 276 x 150 x 60 mm

Dimensions w/ socket (W x D X H) 295 x 170 x 60 mm

Weight 2 kg
