Printed Circuit Board Version

 Introductory Sale, only sell at 10 pcs each lot at US$80

NO sell individually

 This socket solves an old problem of tubes enthusiasts.

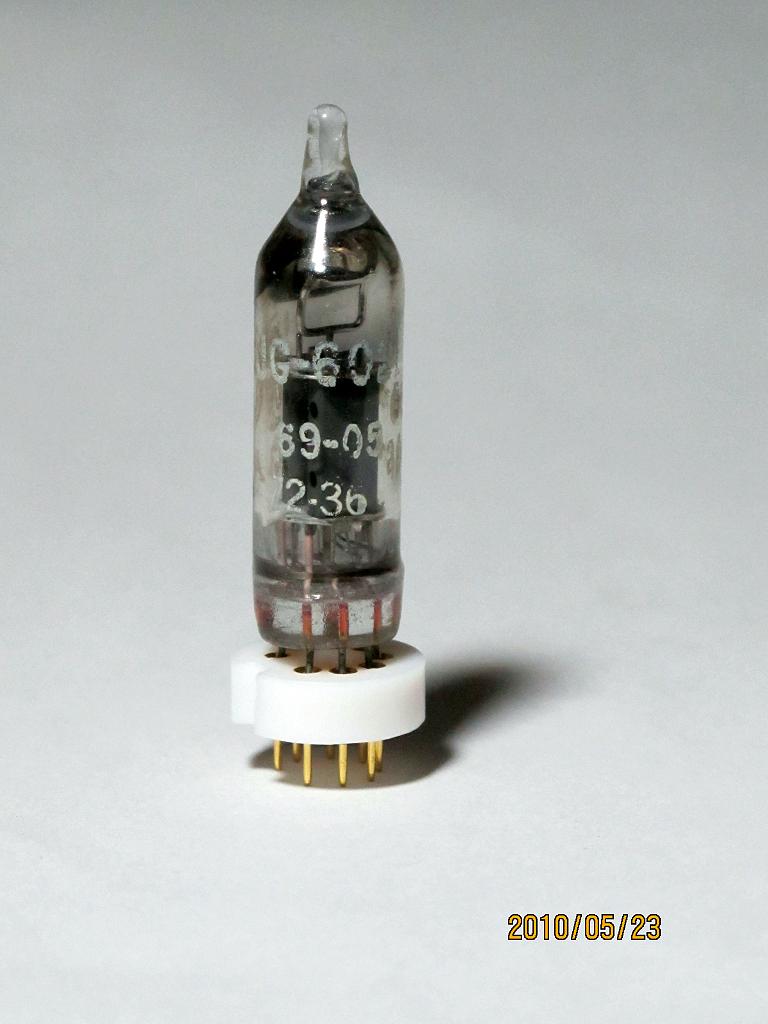

This is the world-first highest quality sub-miniature socket for miniature tubes like 6021, 6111, 6BF7, 6112, 7327, ECC70, 6N16, 6N18... etc.

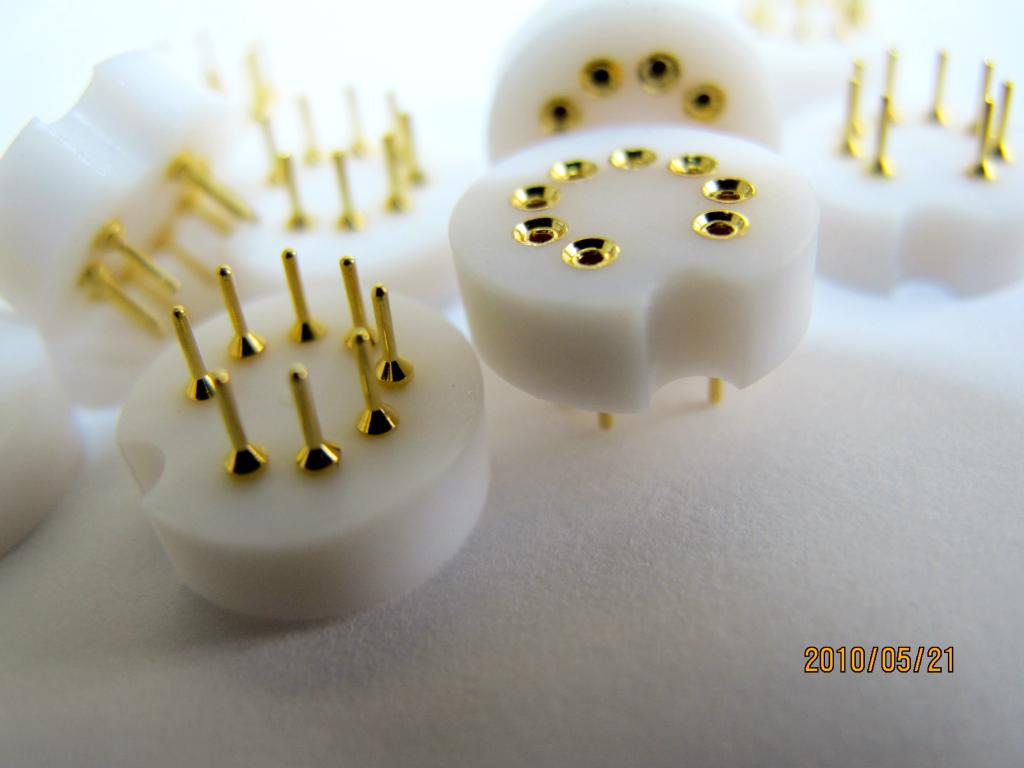

These tube sockets are world first in it's kind.  They are made of Teflon. This material  can not be die molded, and can only be machined from a solid block. The cost of raw Teflon blocks is very high, but it is the ultimate material for isolation. It doesn't get dirty because of the self-cleaning surface, and is resistant against ANY chemical influence.

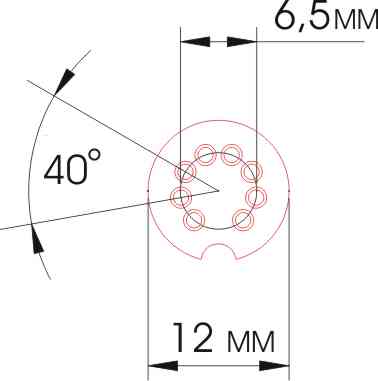

Dimension: 12mm(OD of Teflon base) x 4mm thick (Teflon base)

6.5mm (pin circle diameter, the exact diameter of subminiature tube's flying pins)

8 Pins  (40 radius degree for each pins, 80 radius degree for pin 1&8)

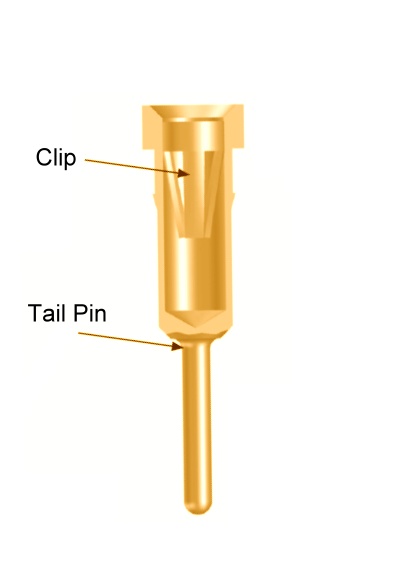

Tail of pins: 0.5mm in diameter, 3 mm tail length (outside teflon base)
