Canary DAC is a successor model of our successful Paradisea series DAC.

Canary DAC is capable of up to 24bits/192kHz digital signal inputs.

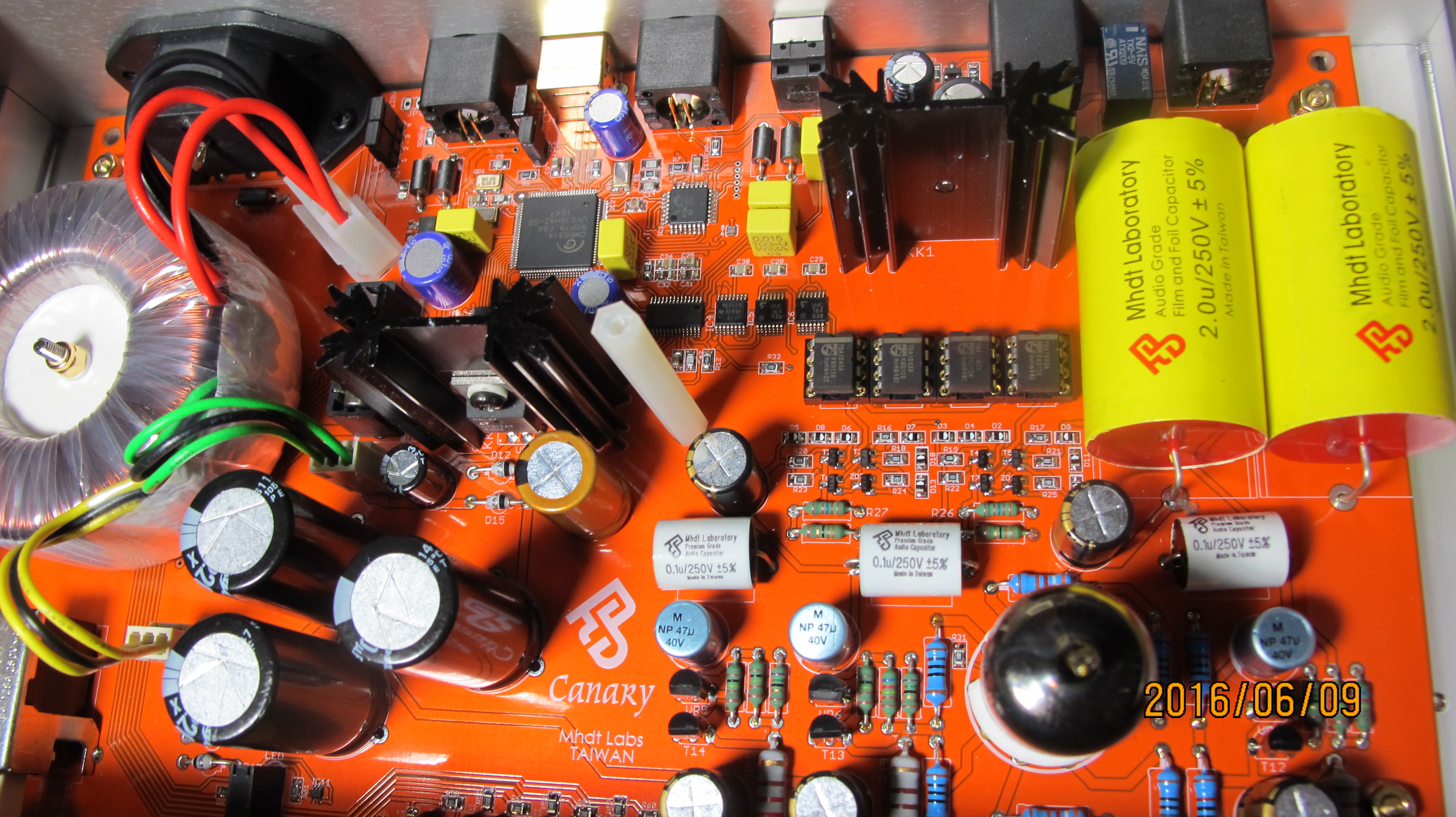

Canary DAC installed four Philips TDA1545A chips to improve the dynamic response and resolution.

Canary DAC is a non over-sampling, no digital filter, no op-amp, no feedback structured DAC.

This tends to produce most realistic and natural sound.

The USB input section is in asynchronous operation.

Total four independent  digital inputs; BNC, USB, RCA and Toslink.

The 4 digital inputs are independent to each other, only one among them will be active and is controlled by the tact switches located in front panel.

Tube buffered output, tube in stalled is  GE5670 3 mica tube.

Tubes can be used: 5670, 2C51, 396A, 6385, 6CC42, 6854, 6N3,

6854, CV2575, CV4013, CV5894, CV8247, CV2381

115/230V power supply selectable from internal PCB jump pins setting

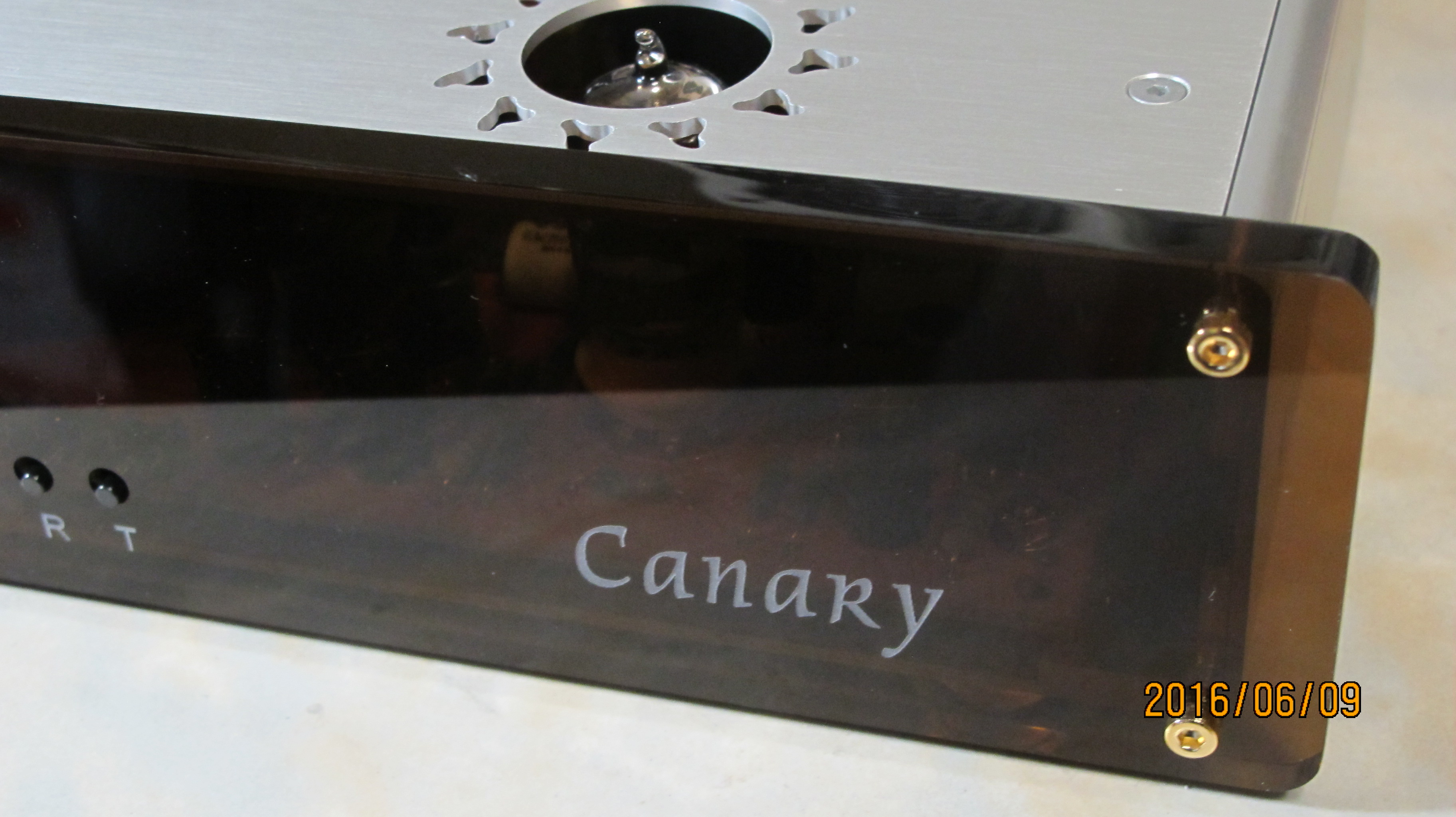

Available in black and sliver cabinet, when you order please specify black or silver case.

Default in black cabinet.

No powercord is included when ship out

Specifications:

Digital Receiver CS8416 x 1

D/A converter TDA1545A x 4 (can be 1 ~ 4)

I/V stage: discrete transistors no OP-AMP no feedback

Frequency response: 20 Hz to 18 kHz (± 2dB)

Output impedance:  32 ohms

Output level:  3.0 Vrms

 USB input 16, 24 bits 44.1 kHz or 48 kHz, 88.2kHz, 96kHz, 176.4kHz and 192 kHz; drivers required

USB inputs are all in asynchronous operation.

 All other inputs (SPDIF) 16, 24 bits 32 kHz up to 192 kHz

 Dimensions clear (W x D X H) 276 x 150 x 60 mm

Dimensions w/ socket (W x D X H) 295 x 170 x 60 mm

Weight : 2 kg
