Orchid DAC is a non over-sampling, no digital filter, structured DAC.  This tends to produce most realistic and natural sound.

Orchid DAC is capable of up to 24bits/192kHz digital signal inputs yet remains driving legendary TDA1541A R-2R digital to analog output.

The USB input section is in asynchronous operation.

Total four independent  digital inputs; BNC, USB, RCA and Toslink.

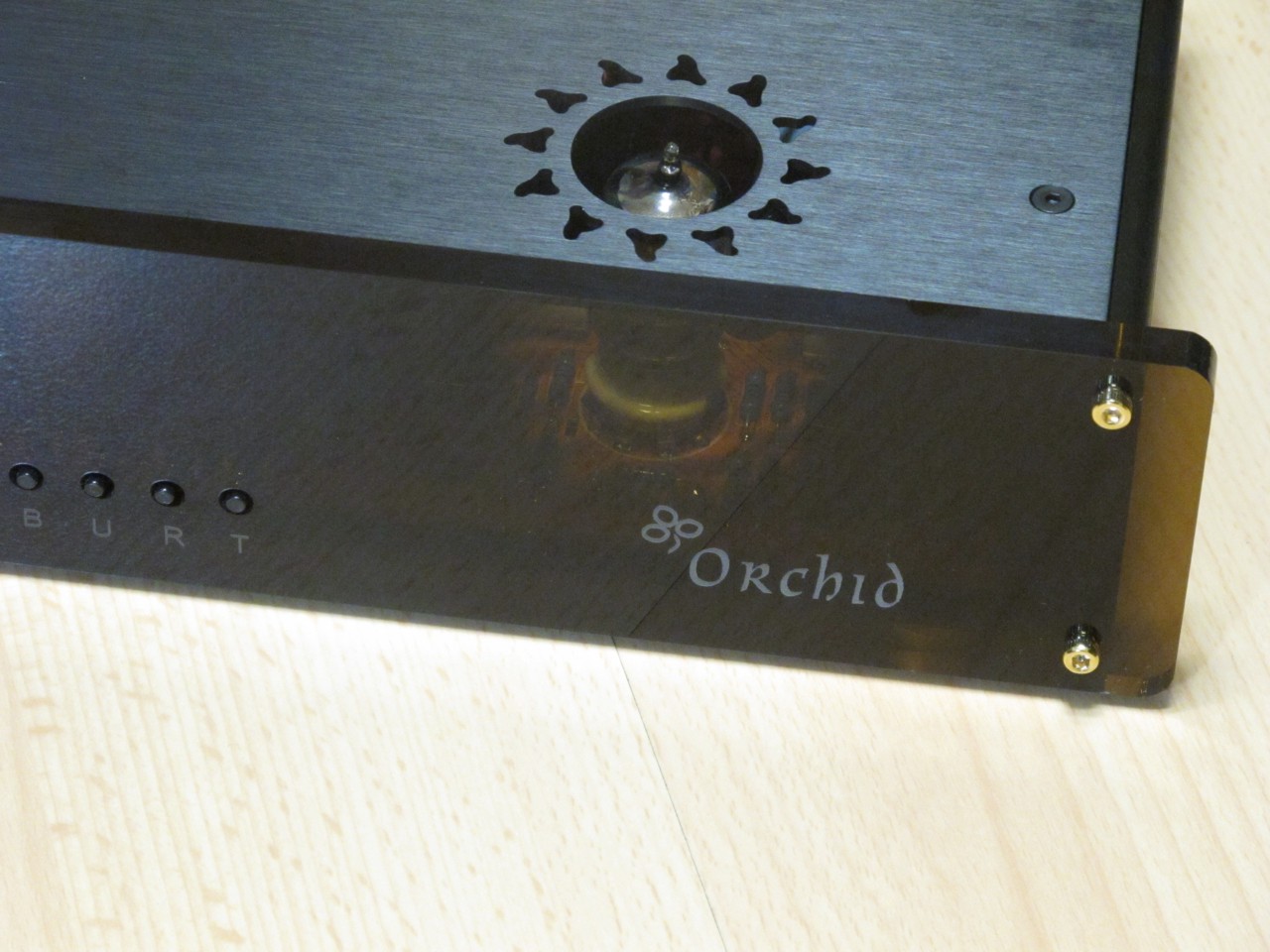

The 4 digital inputs are independent to each other, only one among them will be active and is controlled by the tact switches located in front panel.



Tube buffered output, tube in stalled is  GE5670 3 mica tube.

Tubes can be used: 5670, 2C51, 396A, 6385, 6CC42, 6854, 6N3,

6854, CV2575, CV4013, CV5894, CV8247, CV2381

115/230V power supply selectable from internal PCB jump pins setting

Available in black and sliver cabinet, when you order please specify black or silver case.

Default in black cabinet.

No powercord is included when ship out





Specifications:

Digital Receiver CS8416

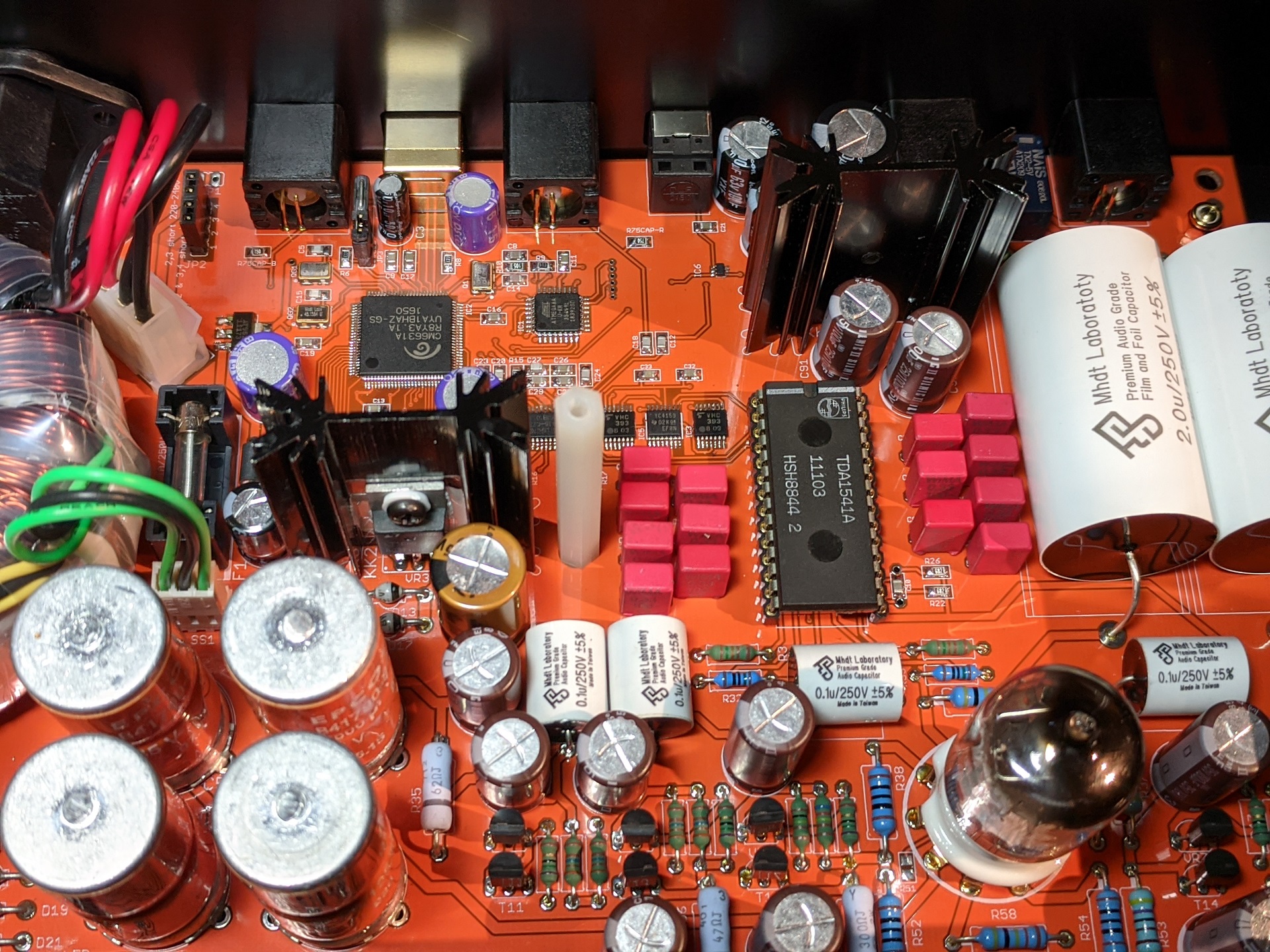

D/A converter TDA1541A - R1

I/V stage: discrete ideal transistors (OPA861 used as transistor) , no feedback

Frequency response: 20 Hz to20kHz ( 2dB)

Output impedance:  32 ohms

Output level:  3 Vrms

 All inputs support 16/24 bits/ 32 kHz up to 192 kHz

Dimensions clear (W x D X H) 276 x 150 x 60 mm

Dimensions w/ socket (W x D X H) 295 x 170 x 60 mm

Weight 2 kg
